Roboeye 2+ series fits the volume of interest in a particular application

We offer three camera models with different viewing angles that come with a wide variety of specially designed variations.

These cameras have a short baseline to provide blind spots, optical quirks, cover-ups and point cloud artifacts

Reduce it effectively to ensure accurate and reliable 3D imaging.

Objects made of transparent, absorbent and reflective materials account for a significant portion of e-commerce and manufacturing inventories.

Roboeye 2+ uses time-structured light to widen boundaries and enable Roboeye's 3D technology to capture a complete point cloud of any object

Segmentation, Recognition, Classification, Matching, Measurement, Pose calculation, Conflict Verification, Picking, Placement

Roboeye 2+ supports machine vision and AI-driven application programs with 5 MPx high resolution color images and HD point clouds. With Roboeye 2+, all machine vision algorithms are supported as one product.



Roboeye 2+ meets all the requirements of industrial 2D cameras to perform detection, segmentation, recognition, and classification in robotic application programs.

This unique combination reduces the number of hardware components and simplifies robot cell installation and maintenance without internal and external calibration between the 3D and 2D cameras. It gains all the input data needed for a customer's algorithm as a single device, increasing developer productivity with an integrated programming model and a simplified machine vision pipeline.

The importance of speed

You can see more at 100ms speed. You can see everything at 500ms.

With a powerful and flexible 900-lumen projector, 5MPx image sensor, optimized optics, 10GigE Ethernet, finely tuned electronics, and rearranged 3D technology, Roboeye 2+ creates a complete point cloud at incredible speed. With a flexible Roboeye technology platform, you can optimize application performance and accelerate innovation.

You can use next-generation 3D technology that can capture scenes in a dynamic range of 60 dB at 100 ms or see the dynamic range of 82 dB at a single point cloud capture.

True industrial 3D cameras for robotic applications

Roboeye 2+ is an industrial 3D camera designed to be robust against mechanical shocks (15G), vibrations (5G), temperature changes, and ambient light. The Roboeye 2+'s robustness and compact design can be used on fixed walls as well as on robot arms. Specifically, it does not degrade performance when mounted on the end effector of a fast-moving robot.

The ultra-small Roboeye 2+ camera, measuring 169 mm x 124 mm x 56 mm, and measuring 1000 g, has minimal impact on the robot's mobility and payload. This keeps the robot agile and efficient.

Sustainable performance and accuracy

Roboeyee's 3D hand eye calibration is

Simplifying the process of connecting 3D cameras to robots allows customers to maintain the highest performance of Roboeye 3D cameras.

Leveraging factory-calibrated point clouds, Roboeye 3D hand-eye calibration APIs provide superior results with minimal location. Most importantly, calibration results are repeatable and have the advantage of being easy for users to achieve.

This has the advantage of using the Roboeye 3D camera to perform calibration on-site while also returning the 3D camera to the calibrated state at any time.

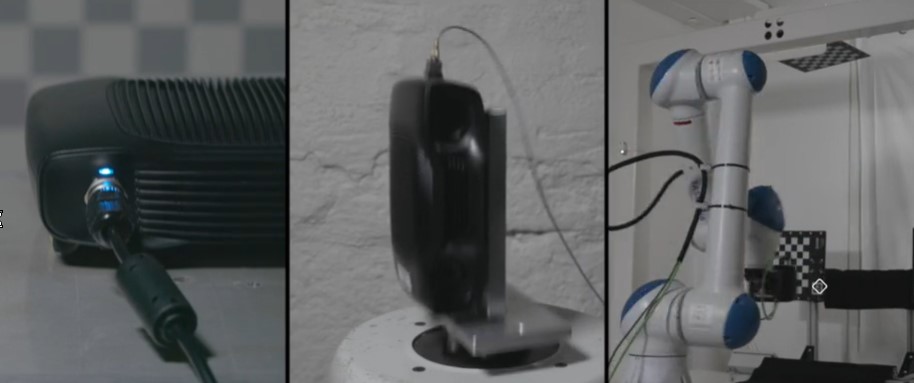

Roboeye performs comprehensive durability tests to ensure the continuity and performance of the cameras in real-world work environments. These tests include simulations of vibration, acceleration, direction, and deceleration that robots actually experience in their applications.

During the test, the camera's performance level is monitored to ensure that it meets the specified requirements and delivers satisfactory performance.
